828 Type Glazed Steel Step Roof Tile Roll Forming Machine With Hydraulic Station
Technical Parameter:
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 50Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.8mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 13800mm*1800mm*1300mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 75mm |
| 10 | Weight of the Machine | 3000-3500KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 9.5kw |
| 15 | Power of hydraulic system | 5.5kw |
| 16 | Power of main molding core | 4kw |
Working Flow of Machine
Decoiler--- Feeding---- Roll Forming ---- Cutting ---- output
Features:
828 Type Glazed Steel Step Roof Tile Roll Forming Machine, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.
The line is for continuously roll forming and pressing step tile on series profile. The length is unlimited andstep depth can be as customers’ requirement.
Advantages:
828 Type Glazed Steel Step Roof Tile Roll Forming Machine With Hydraulic Station
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. Powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
Product Tags:
|
|

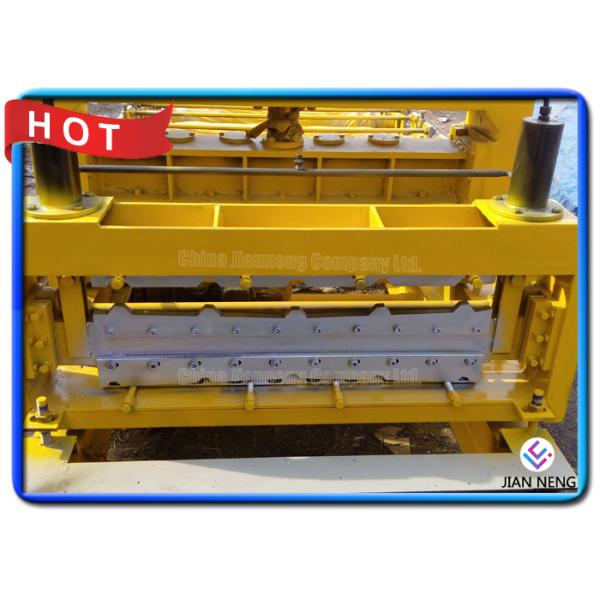

828 Type Glazed Steel Step Roll Forming Machine With Hydraulic Station Images
|
